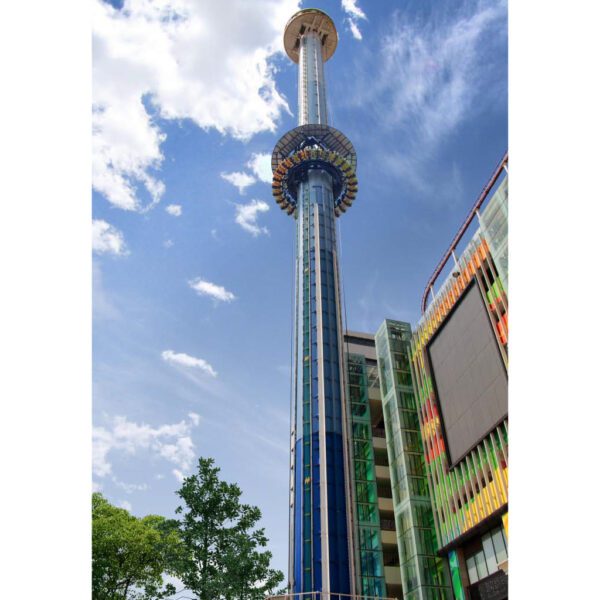

As the name indicates, Free Tower offers passengers a few precious seconds of freedom, a total freedom from gravity. The freefall ride stands 65m tall. A hoisting frame locks onto the carousel which is mounted with circular seating around. Then it starts to lift the carousel in a slow and controlled pace up to 55m high from where the big drop unfolds as the locking device is disengaged.
The downward impact is weakened and brought under control at the lower braking section of the tower which features smooth magnetic braking technology.
Balanced with tranquil sight-seeing pleasure (up) and extreme freefall sensation (down), this tower ride is always a star installation in parks that we have worked with.
| Installed Capacity: | 330kVA |
|---|---|
| Drive Power: | 202.4kW |
| Ride Height: | 65m |
| Running Height: | 54.6m |
| Swing Diameter: | 7m |
| Rotation Speed: | 10pm |
| Max. Speed: | 82km/h |
| Load Capacity: | 28p |
| Area: | 12.2m x 11.5m |
